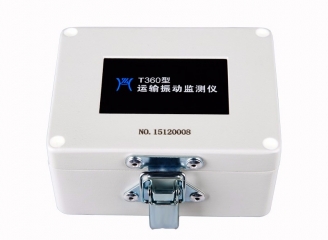

T360 transport vibration meter -
T360 transport vibration meter
- Model:T360 /Zhongheng
- Application Features:Application characteristics: General and reliable transport black box, recorded three-axis collision data and the moment is used for finding the cause of damage to the cargo, provide the basis for defining the responsibility and optimizing the packaging design.
- Contact tel:+86 028-85249456 / +86 18608045982
T360运输振动冲击记录仪是一款通用可靠的运输黑匣子，通过仪器记录的三轴冲撞数据及发生时刻查找货品损坏原因，能为责任界定、优化包装设计提供依据。仪器广泛应用于电力大件、精密设备、生产制造等行业复线物流运输振动冲撞安全监控。 &
T360 transport vibration shock recorder is an universal and reliable transport black box, find the cause
of damage to the cargo through the instrument recorded three-axis collision data and the moment, to provide
the basis for defining the responsibility and optimizing the packaging design The instrument is widely used in
transport vibration collision safety monitoring for large electric equipment, precision equipment, manufacturing
and other industries double-track logistics.
Optimize the packaging design find the event cause and effect optimize the transport program provide delivery certificate provide claims basis
>> more typical applications
○ Large electric equipment transport vibration collision record precision equipment transport monitoring
○ manufacturing products double track logistics safety monitoring ○ friability test
○ Logistics transportation shock drop monitoring ○ Assembly line monitoring
○ Vibration evaluation ○ Vehicle comfort assessment
Multi-industry transport monitoring general
Triaxial acceleration peak with time stamp
Recycle rechargeable batteries
Large capacity battery life for more than 90 days
Pin closure closed for easy loading or unloading
Waterproof, corrosion-resistant, cast aluminum housing
The system is mainly composed of T360 impact recorder and user terminal software. Prior to transport test, fix the machine
and switch it on, the acquisition can be started by touching button on the machine and setting parameter in the user terminal
software. During the transportation process, the system will automatically record and store the entire dynamic waveform data,
the tester can establish communication with the recorder through the on site one-click printing or by use using computer
equipped with user terminal software, for managing, analysising the stored file and making reports.
Technical indicators
Sensor: Triaxial acceleration sensor
Range: ± 16g
Measurement accuracy: ± 0.3g, 0.01g resolution
Power supply: rechargeable battery, continuous work for more than 60 days
Recording cycle: through the recorder button settings, 1 second -1 hours adjustable. The instrument records the three-axis (XYZ) acceleration peak and the corresponding time according to the set record period
Record: continuous record. The instrument is recorded at the current time as the starting time and the corresponding cycle indicator flashes
Data storage: standard 8GB SD card to facilitate reading copy data, you can continuously store more than 6 months of monitoring data
Processing software: based on WINDOWS analysis and processing software, Chinese and English software optional
Data format: TXT standard format
Operating environment: -35 ℃ ~ +60 ℃, 0 ~ 95% RH non-condensing
Installation size: 115 × 95 × 55mm (not including the installation kit)
Shell material: waterproof corrosion-resistant shell, the work of the whole sealed, waterproof, moisture, anti-corrosion
Installation: M4 screws
Software features
The peak of the three-axis acceleration is displayed in the time-acceleration coordinate system
The composite shows the triangular acceleration rms value
Support waveform movement and other operations
The cursor displays the data point value and the corresponding time
Statistics exceeded the number of times, the maximum and the corresponding time
Monitoring start time, run time, recording cycle, instrument number, transport, origin, destination, transport information display
